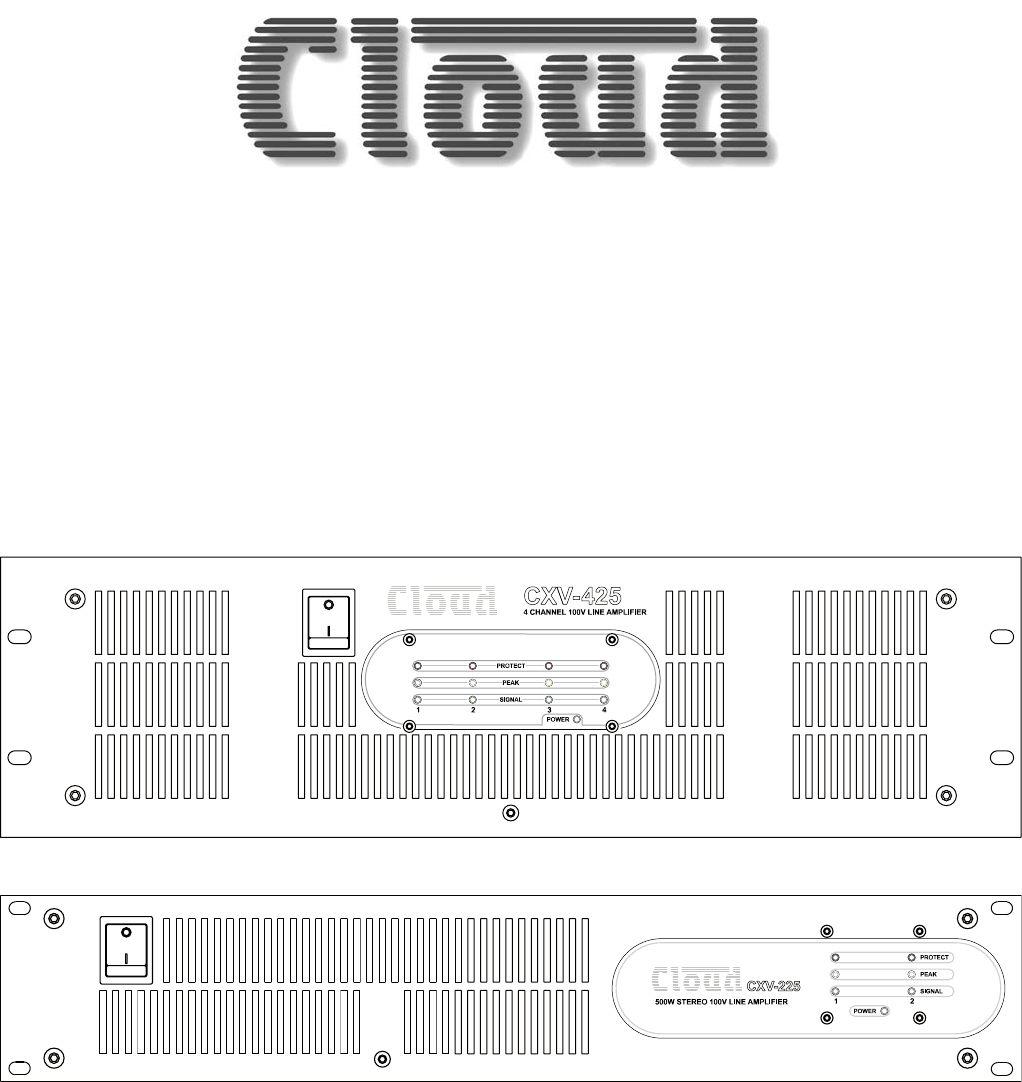

CXV-225 & CXV-425AMPLIFIERS Installation and User Guide

CXV-225 & CXV-425 User Manual v1.010ProtectionThe ampliers include comprehensive protection circuitry to prevent damage to loudspeakers, the outp

CXV-225 & CXV-425 User Manual v1.0 11BOSE® Equalisation Modules (Optional)The CXV-225 and CXV-425 are compatible with Bose® Series II loudspeakers

CXV-225 & CXV-425 User Manual v1.012Technical SpecicationsCXV-225 & CXV-425Outputs 100 Vrms; 250 W into 40 Ω min. load (per channel)Frequency

CXV-225 & CXV-425 User Manual v1.0 13FAN ASSY.REAR OF AMPLIFIERCON3 CON1VCA CARD SOCKETSCON10CON9J1J2BOSE®EQ CARD SOCKETSOUTPUT TERMINALSNOT TO SC

CXV-225 & CXV-425 User Manual v1.014CXV-425 connector and jumper detailsMODEL PCB REF Function Default SettingCXV-425CON12 CH1 VCA CARD SETCON13 C

CXV-225 & CXV-425 User Manual v1.0 15Bose® is a registered trademark of The Bose Corporation.In the interest of continuing improvements Cloud Elec

Cloud Electronics Limited140 Staniforth RoadShefeld S9 3HFEnglandTel: +44 (0)114 244 7051Fax: +44 (0)114 242 5462email: [email protected]: www.clou

CXV-225 & CXV-425 User Manual v1.0 3ContentsSafety Information ... 4Safety Notes Regarding Installation ...

CXV-225 & CXV-425 User Manual v1.04Safety InformationSafety Notes Regarding InstallationDo not expose the unit to water or moisture. •Do not expos

CXV-225 & CXV-425 User Manual v1.0 5Applicable ModelsThis manual describes the installation and operation of the following models:Cloud CXV-225 2-

CXV-225 & CXV-425 User Manual v1.06Front Panel Description1SIGNAL LEDs (one per channel) – illuminate when the output voltage exceeds approx. 12.5

CXV-225 & CXV-425 User Manual v1.0 7Rear Panel Description1INPUT CONNECTORS (one per channel) 2INPUT LEVEL CONTROLS (one per channel)3HIGH PASS FI

CXV-225 & CXV-425 User Manual v1.08InstallationMechanicalThe ampliers are designed to be mounted in a standard 19” equipment rack. The front pane

CXV-225 & CXV-425 User Manual v1.0 9Remote Control of LevelThe CXV-225 and CXV-425 ampliers are compatible with standard Cloud remote control pla
